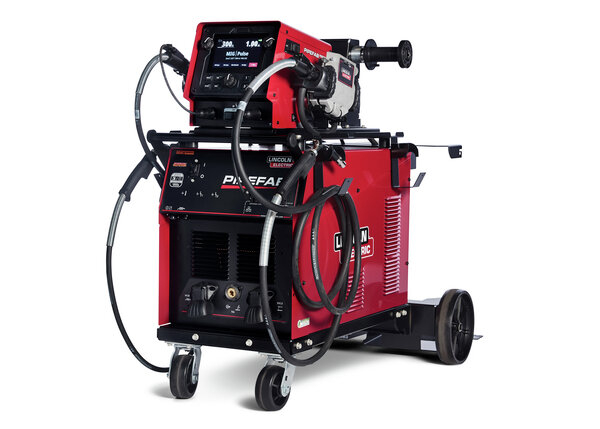

PIPEFAB™ Ready-Pak®
In Stock
The Lincoln PIPEFAB™ Ready-Pak is a comprehensive welding system designed specifically for pipe and vessel fabrication. It offers advanced features to ensure consistent, high-quality welds across various applications.
Key Features
Cable View™ Technology: Continuously monitors cable inductance and adjusts the waveform to maintain consistent arc performance, even with long or coiled cable runs.
Breakthrough Arc Performance: Delivers high-quality results from root to cap to final fit, enhancing overall weld quality.
Digital Navigation: Provides unmatched simplicity in setting parameters, allowing operators to configure optimal settings quickly without extensive training.
Industry-Focused Design: Engineered specifically for pipe and vessel fabrication requirements, ensuring the system meets the specialized needs of these demanding sectors.
Supported Welding Processes
Stick (SMAW)
TIG (GTAW)
MIG (GMAW)
Pulsed MIG (GMAW-P)
Flux-Cored (FCAW)
STT® MIG
HyperFill
Metal-Cored Wire (GMAW-C)
Specifications
Input Voltage: 200/208/220/230/380/400/415/460/575 V
Input Phase: 3
Input Hertz: 50/60 Hz
Nominal Voltage Output: 26 V to 36 V
Amperage Range: 5 A to 400 A
Dimensions (W x H x D): 30.9 in x 43.5 in x 48.5 in
Net Weight: Approximately 340 lbs
